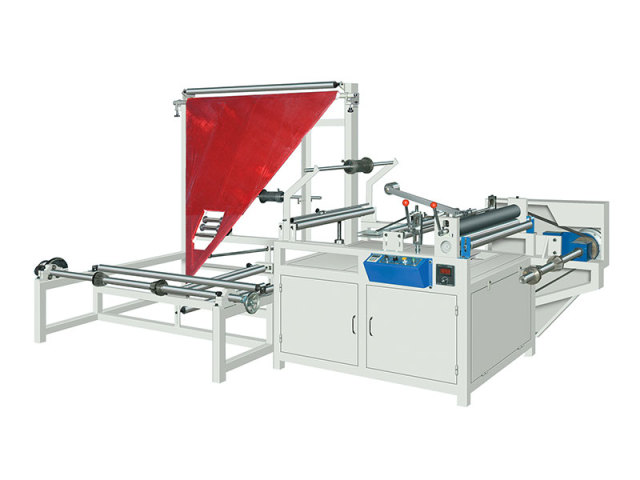

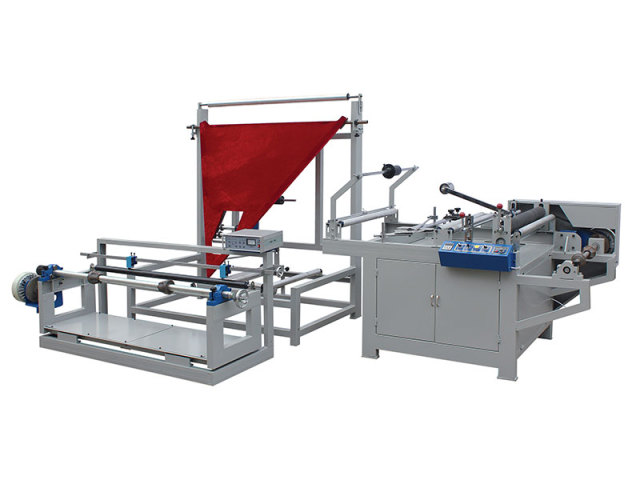

This machine is one part of the thermal cutting machine set, with functions of automatic gluing, orgen-type bottom folding, pearly-luster film laminating, ultrasonic hobbing, automatic meter counting, winding and unwinding for materials, magnetism powder brake,epc. This is a front production line of cutting machine.
Online InquirySuitable materials:
BOPP, PE, etc, which can be used to heat seal and cut( the smoothness of packing materials must be well.
Functions:
This machine is one part of the thermal cutting machine set, with functions of automatic gluing, orgen-type bottom folding, pearly-luster film laminating, ultrasonic hobbing, automatic meter counting, winding and unwinding for materials, magnetism powder brake,epc. This is a front production line of cutting machine.
Main Technical Parameters:
|
Model |
1400 |
1600 |
1800 |
|
Max. making width |
1300mm |
1500mm |
1700mm |
|
Rollout speed |
20-100m/min |
20-100m/min |
20-100m/min |
|
Max.diameter of rolling |
800mm |
800mm |
800mm |
|
Electro-power |
1.5kw |
1.5kw |
2.2kw |
|
Complete weight |
500kg |
600kg |
700kg |
|
Overall dimension |
1800*1350*1450mm 1100*1300*1100mm |
2000*1450*1550mm 1100*1400*1100mm |
2200*1550*1850mm 1200*1500*1100mm |
